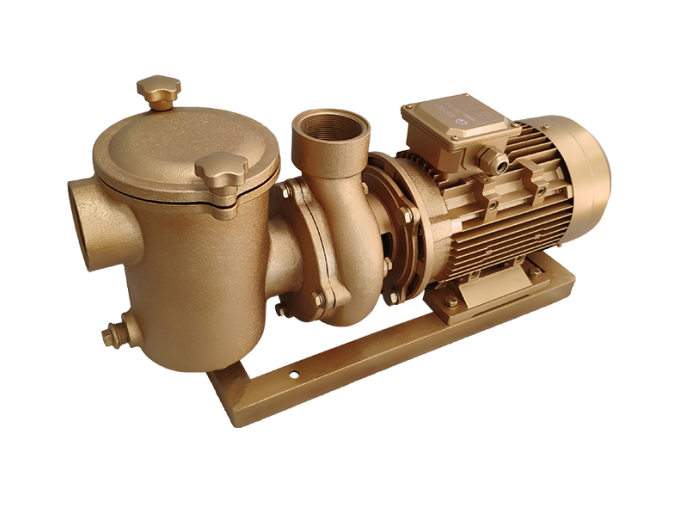

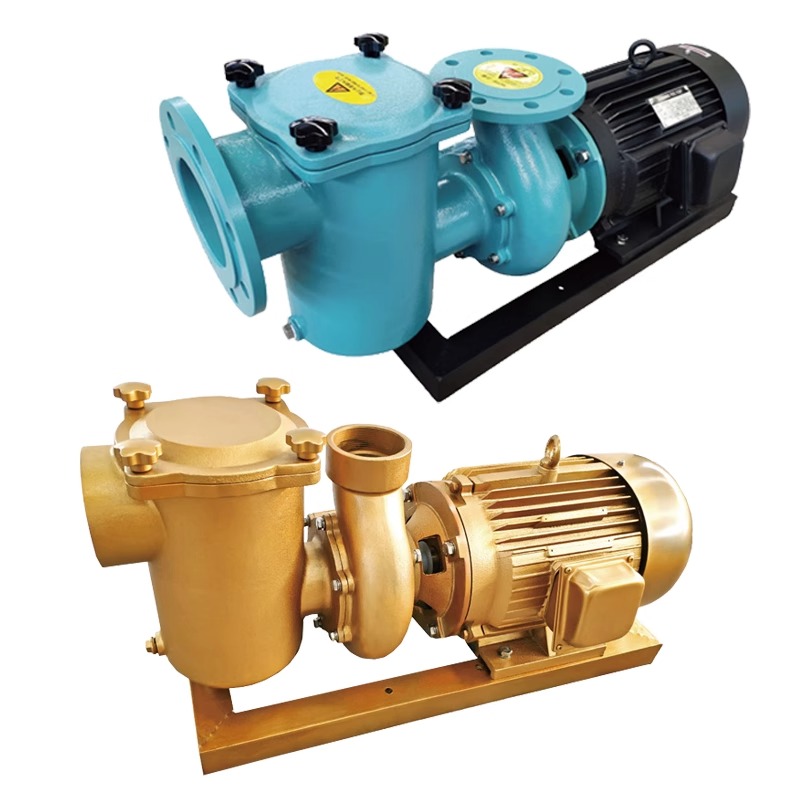

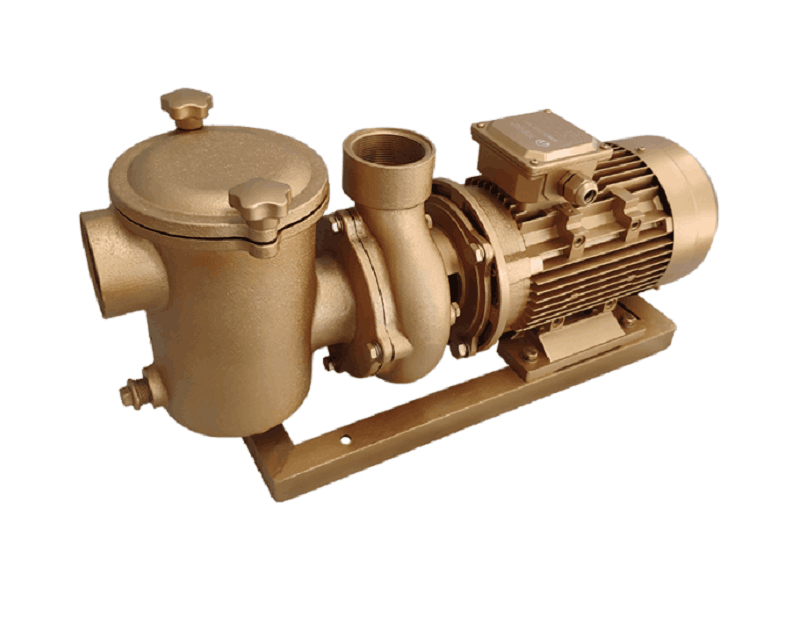

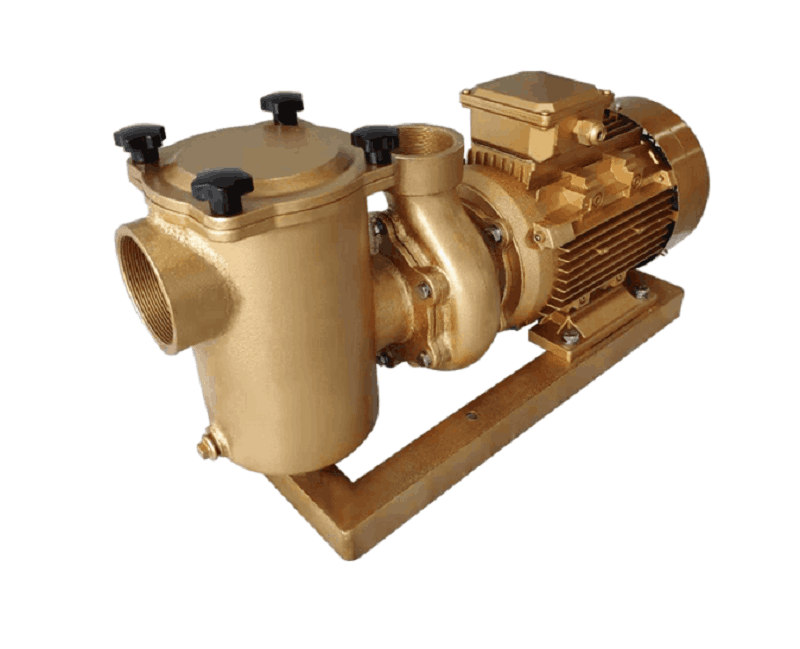

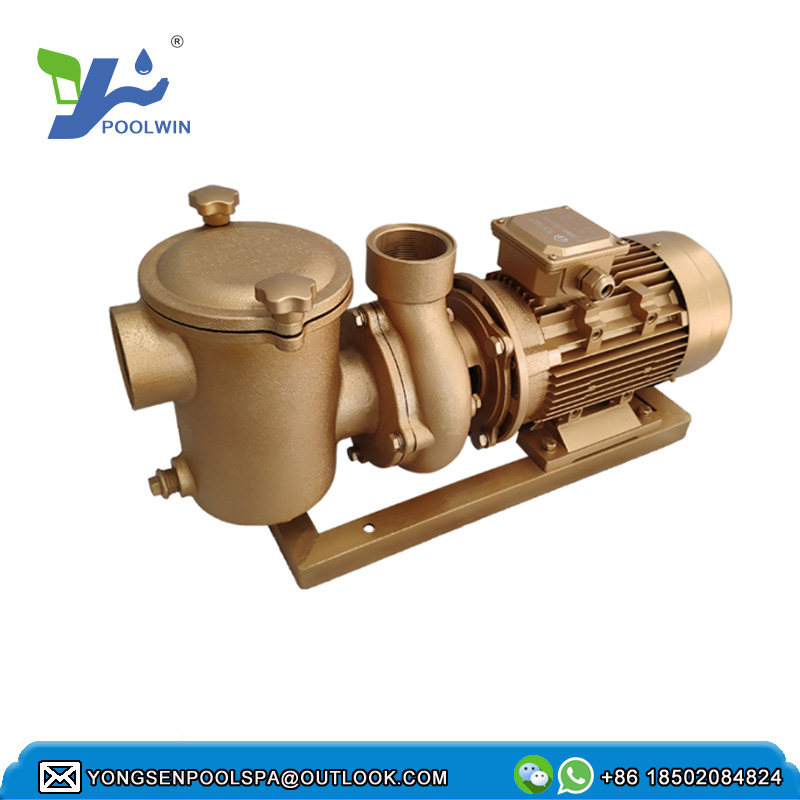

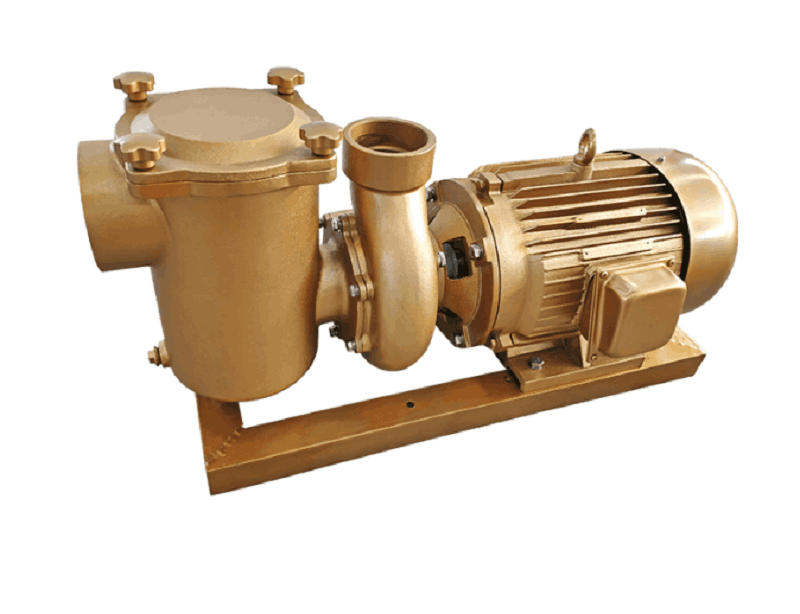

High efficiency pool circulating copper pump
Metal pumps are molded with cast copper. It is solid and durable.The strainer with high capacity helps reducing cleaning work.Characterized by high performance and efficiency.It accelerates water injection rate and improves energy efficiency.Applicable to:swimming pool,industrial water,oceans pavilion,water park,etc.
| Technical Characteristics | |||||||
| Model | Specification | Length A(mm) | Width B(mm) | Height C(mm) | InletФ D(inch) | OutletФ E(inch) | Voltage (V) |
| YBP 30 | 3.0HP | 646 | 266 | 426 | DN50 | DN50 | 380V |
| YBP 40 | 4.0HP | 646 | 266 | 426 | DN50 | DN50 | 380V |
| YBP 50 | 5.0HP | 910 | 330 | 495 | DN80 | DN65 | 380V |
| YBP75 | 7.5HP | 910 | 330 | 495 | DN80 | DN65 | 380V |
| YBP 100 | 10.0HP | 1020 | 460 | 566 | DN100 | DN80 | 380V |
| YBP 150 | 15.0HP | 1020 | 460 | 566 | DN100 | DN80 | 380V |
