Top Mount Sand Filter With Swimming Pool Water Pump Combo Swimming Pool Filter Pump

Top Mount Sand Filter With Swimming Pool Water Pump Combo Swimming Pool Filter Pump

Designed for easy set-up domestic pool, "AQS" series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. "AQS" series filtration combo includes top mount fiberglass filter tank, 6-way multiport valve, swimming pool pumps attached with base.


PRODUCT DETAIL

Model	Max Flow Rate	Filter	Pump	Valve Connections	Sand(kg)
YSF400	6	Y400	0.5HP	1.5inch(50mm)	40
YSF450	8.10	Y450	0.75HP	1.5inch(50mm)	45
YSF500	11.1	Y500	1.0HP	1.5inch(50mm)	85
YSF650	15.6	Y650	1.5HP	1.5inch(50mm)	150

Functions:

Valve Position	Function
Filter	Normal Filtration
Backwash	Cleaning filter by reversing the flow
Rinse	Used after backwash to flush dirt from valve
Waste	By-passes filter, used for vacuuming to waste or lowering water level
Recirculation	By-passes filter for circulating water to fool
Closed	Shuts off all flow to filter or pool

Features:

1) Max operating pressure 36psi/2.5bar
2) Max temperature of 43°C (109F)
3) Universal standard of union connection provided
4) Suggested size of media: 0.5-1.2mm sand

5) Made of fiberglass and polyester.
6) Top diffuser ensures even distribution fo water over the top of the sand bed.
7) Large pressure sand/water drain for rapid winterizing or servicing.
8) UV resistance surface allows the filter to work under direct sunlight.
9) Easy to use water drain plug and multi-port valve lets you select any of the valve/filter operation wiht a simple lever-action.

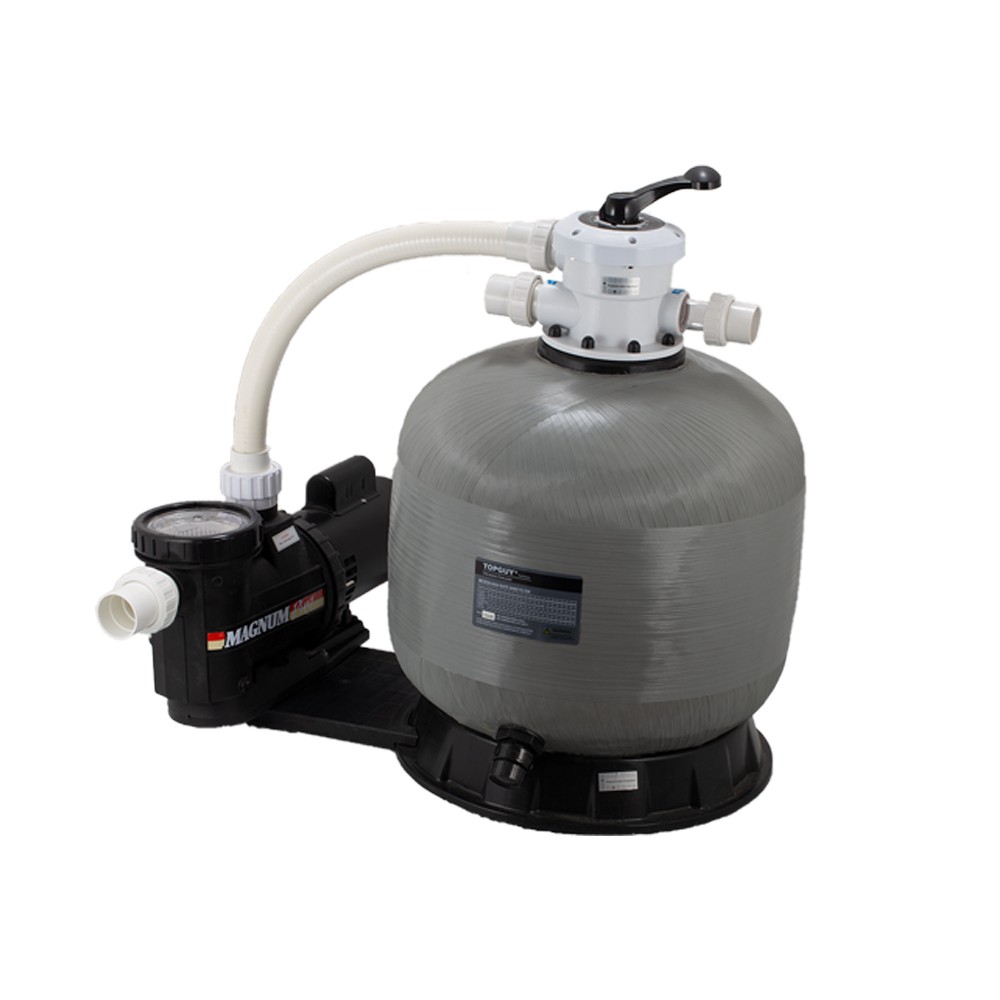

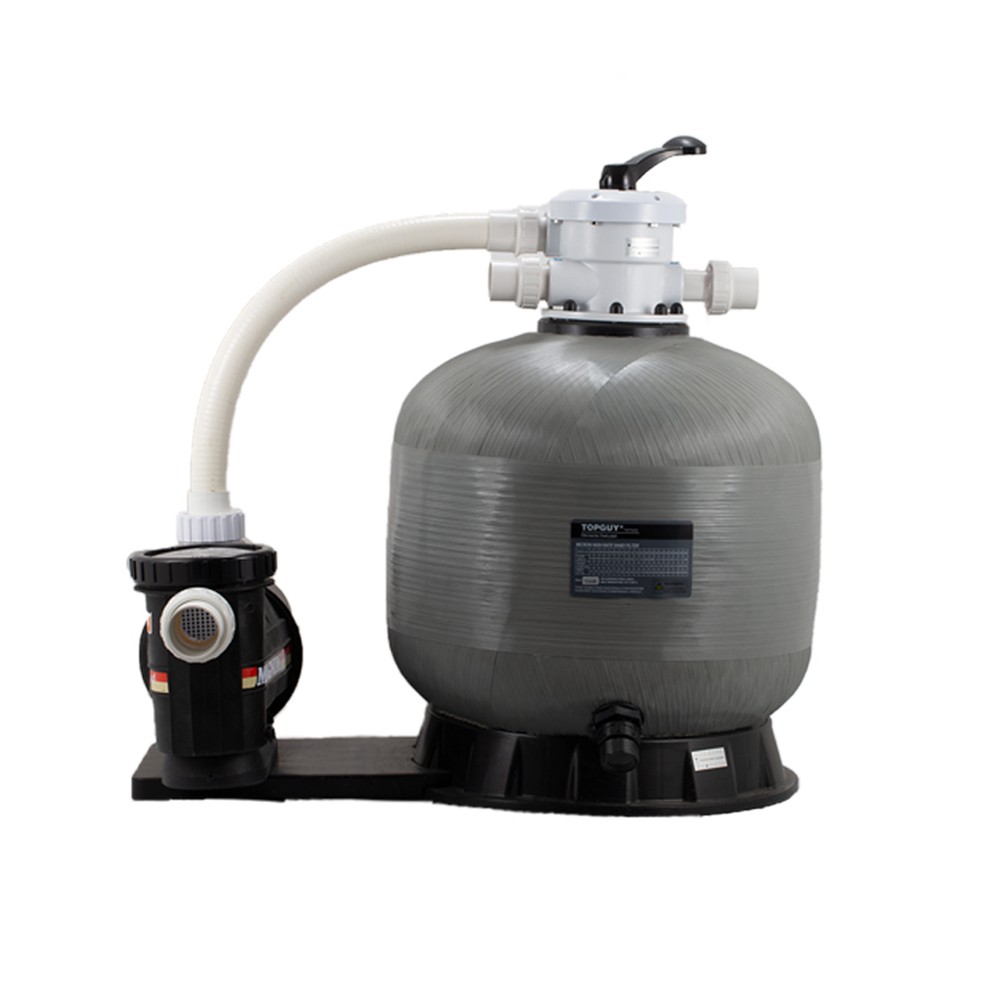

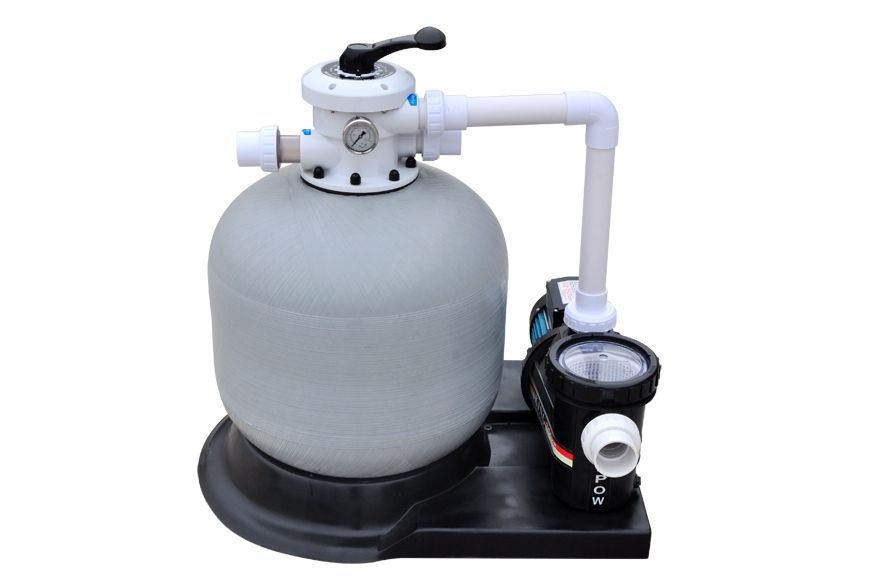

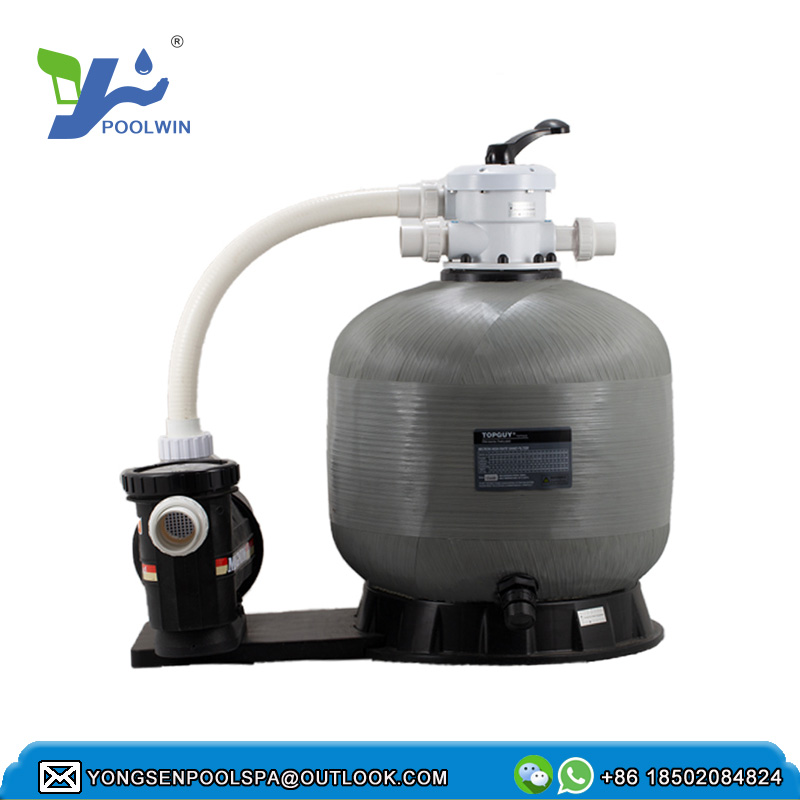

Pictures of top mount sand filter with pump combo:

INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.This will avoid

damages to the laterals by the force of the sand when pouring into the filter.
