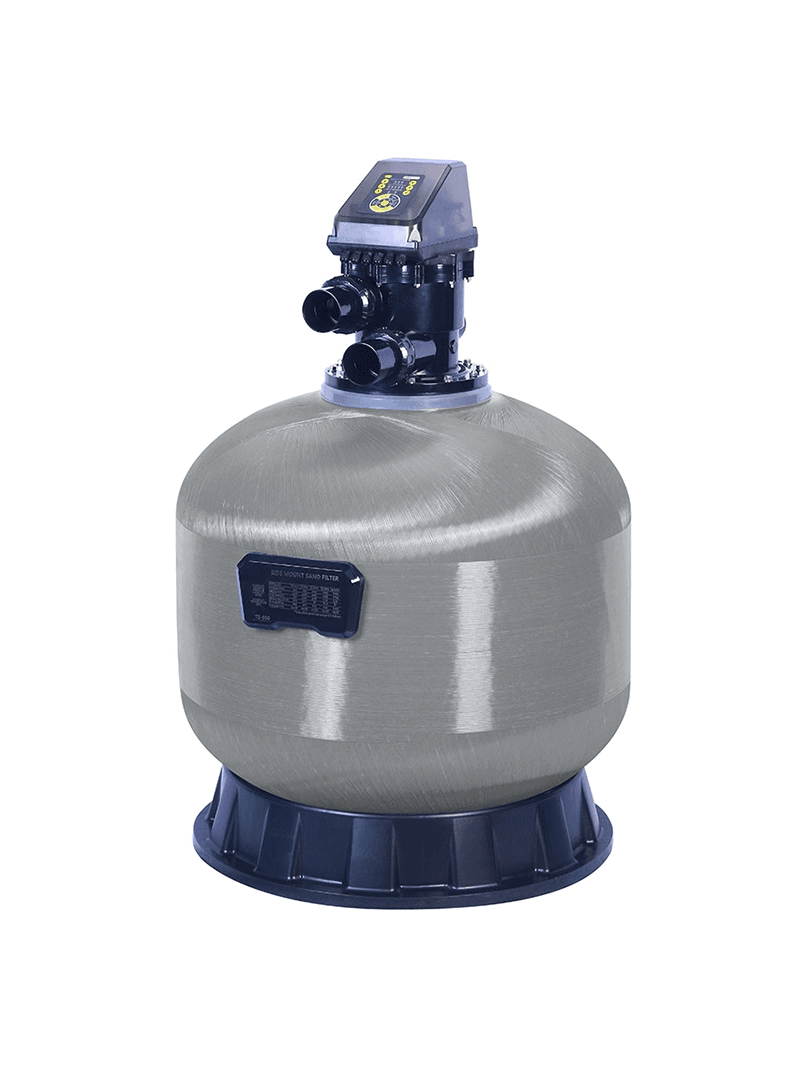

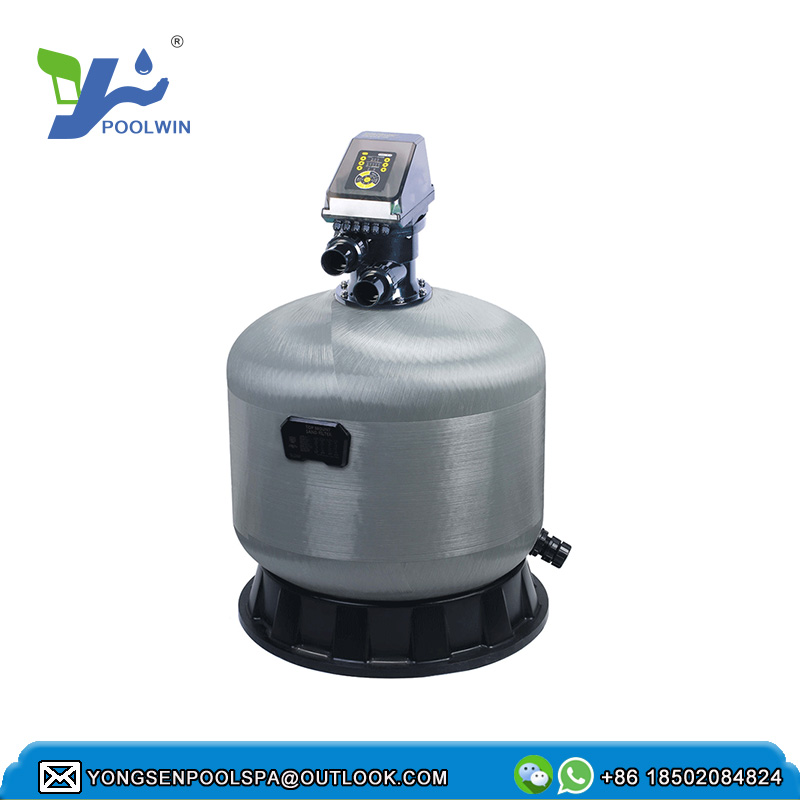

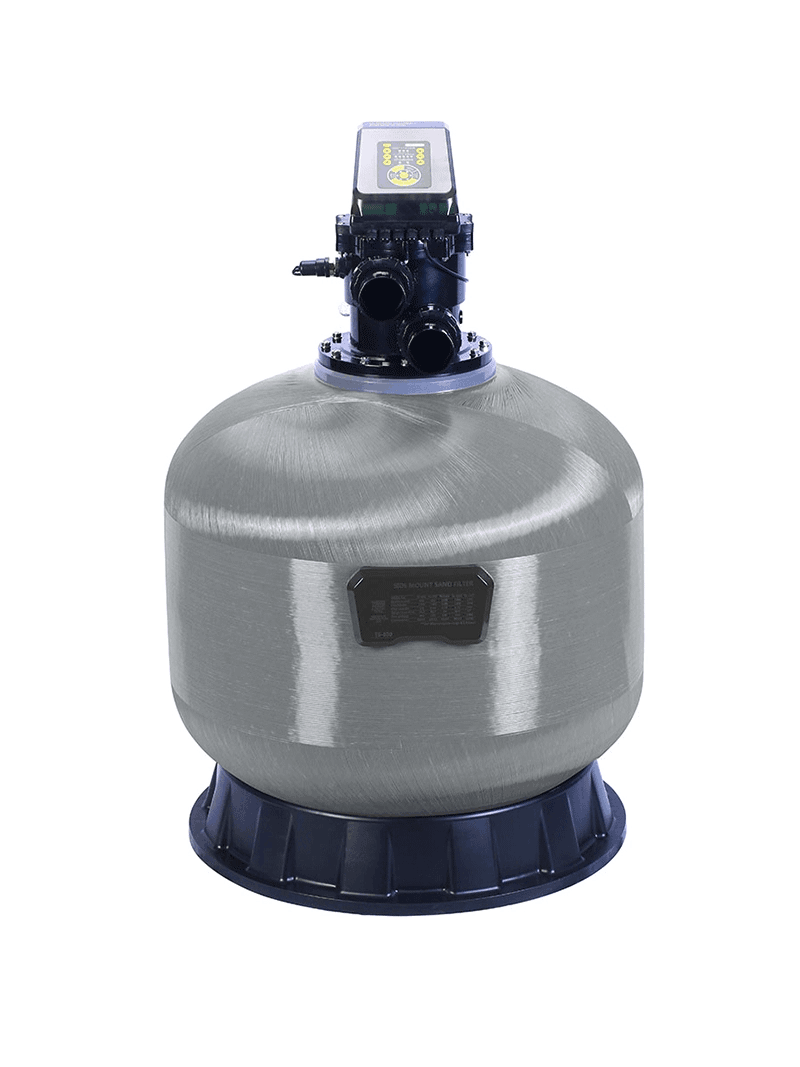

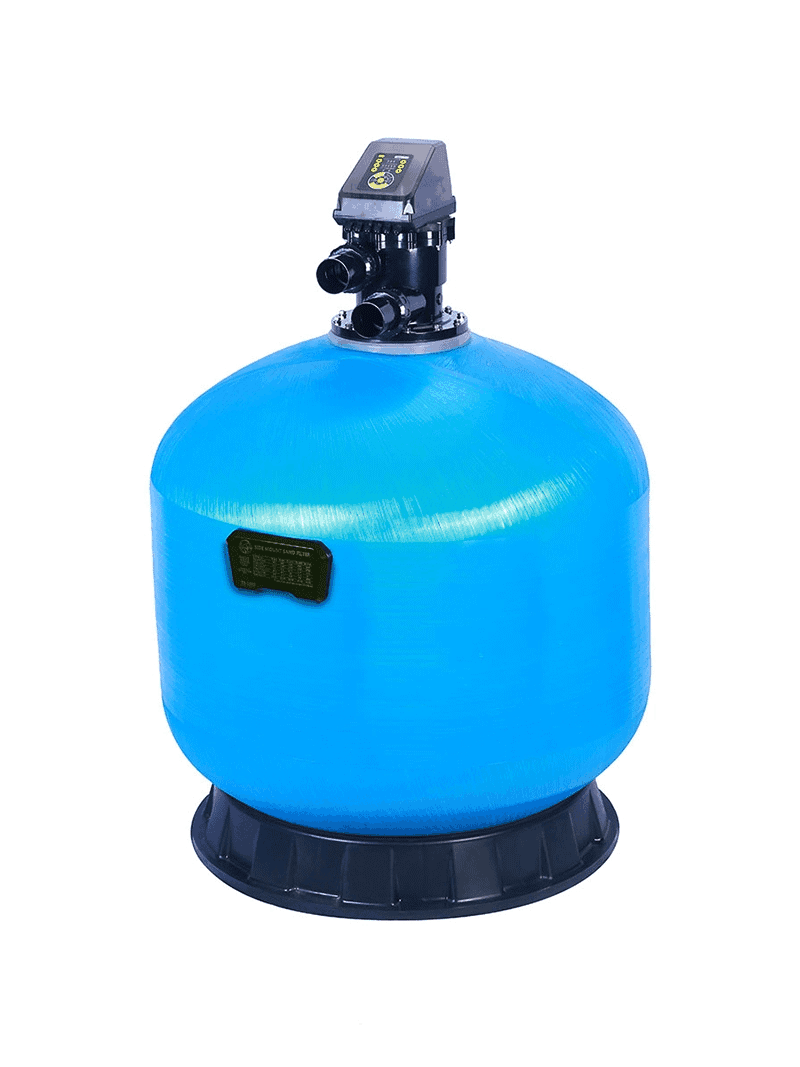

Swimming pool automatic filter backwash sand cylinder top out with flange interface 2 inches

Swimming pool automatic filter backwash sand cylinder top out with flange interface 2 inches


Model	Port Connection	Flow Rate	Filter Area(m2)	Grave(kg)	A(mm)	B(mm)
Y800	2.0inch/63mm	25M3/H	0.50	355	1310	800
Y900	2.0inch/63mm	31M3/H	0.64	470	1380	900
Y1000	2.0inch/63mm	36M3/H	0.79	620	1495	1000
Y1100	2.0inch/63mm	42M3/H	0.96	800	1580	1100
Y1200	2.0inch/63mm	45M3/H	1.13	900	1600	1200
Y1400	2.0inch/63mm	56M3/H	1.54	1350	1810	1400

Top mount sand filter specification:

INSTALLATION

Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.

This will avoid damages to the laterals by the force of the sand when pouring into the filter.
