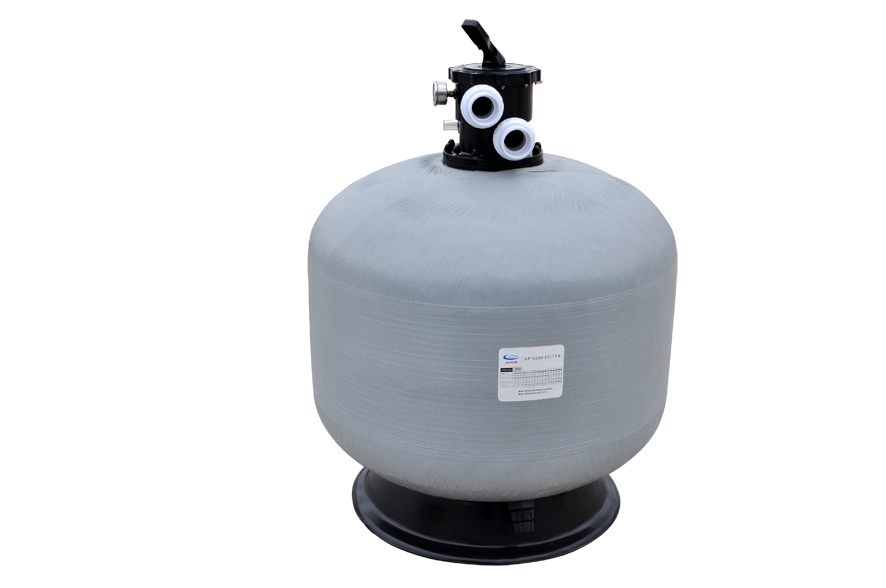

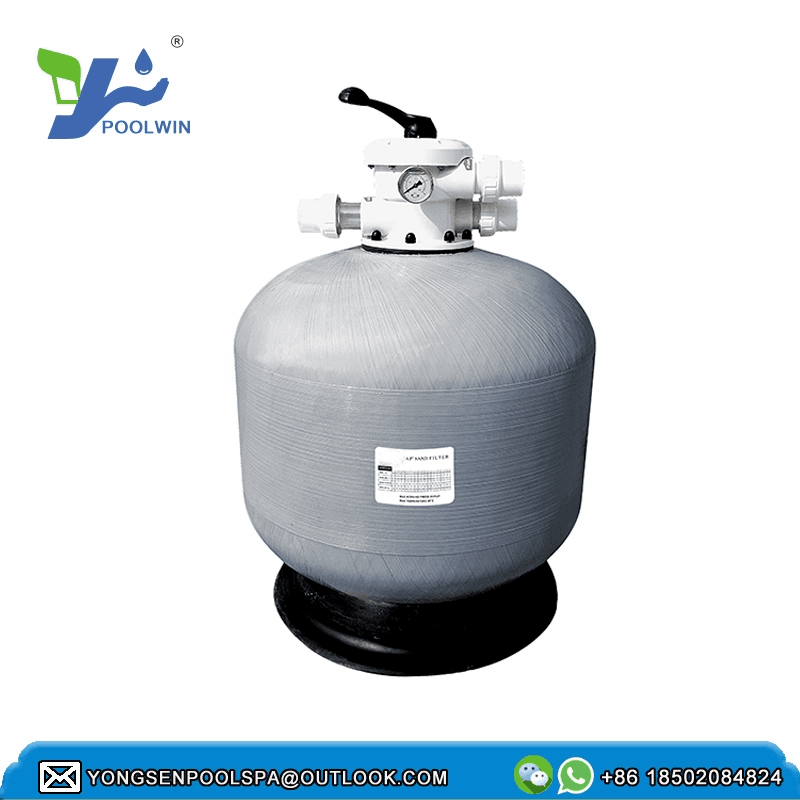

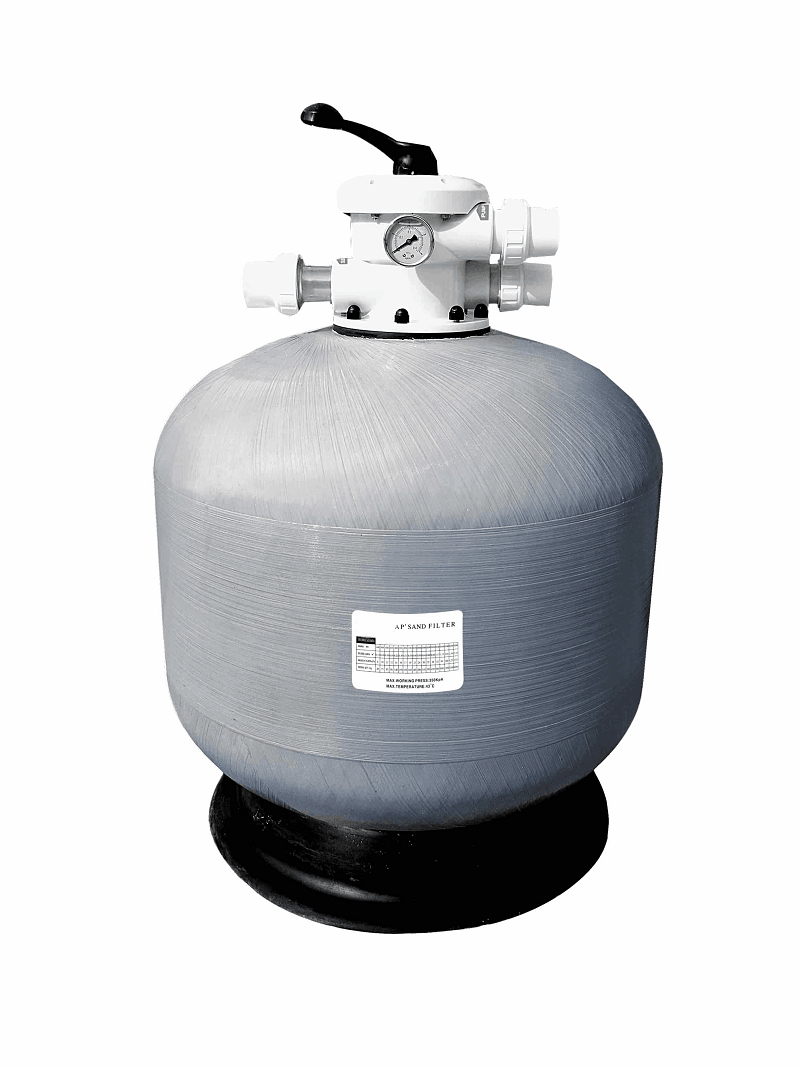

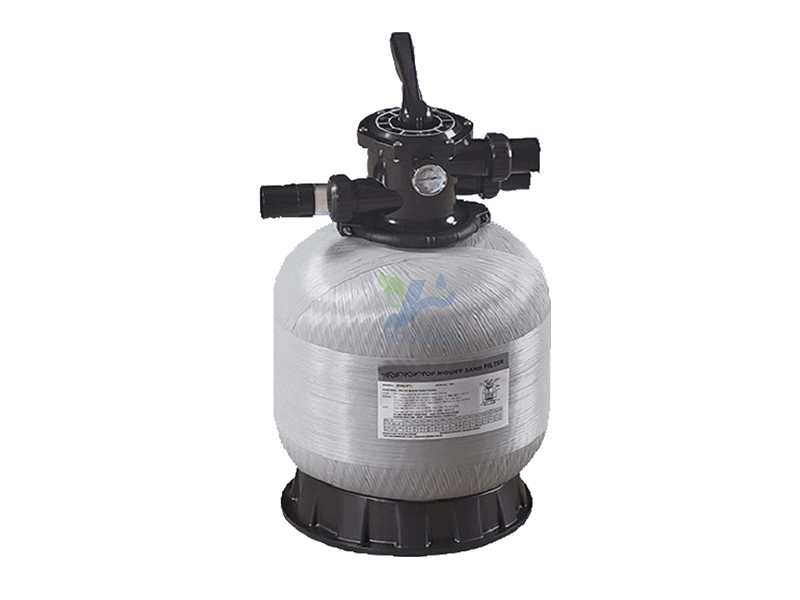

High quality top mount swimming pool sand filter

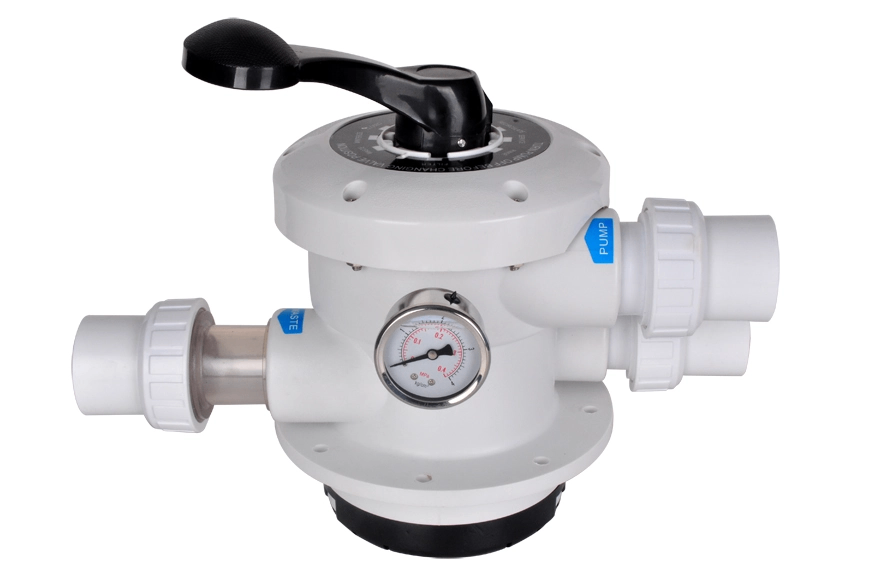

Fiberglass pool sand filtercan be a long time in the sun to operate, but also can adapt to different weather, because it uses a glass fiber and polyester technology, the top of the configuration of a multi-functional 6-way valve, all with ABS material;
The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

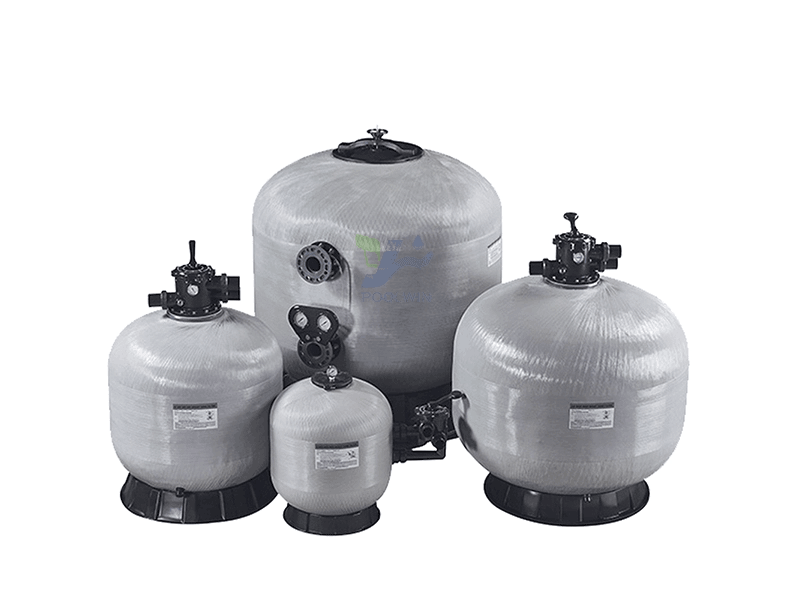

(We could supply top mount, side mount, and commercial sand filter.You can provide project or inquiry list, we will give you solutions and good quotation.If you have any interested in, pls don´t hesitate to contact me, we will send more information to you, thank you so much.)
Model | Port Connection | Flow Rate | Filter Area(m2) | Grave(kg) | A(mm) | B(mm) |
Y800 | 2.0inch/63mm | 25M3/H | 0.50 | 355 | 1310 | 800 |
Y900 | 2.0inch/63mm | 31M3/H | 0.64 | 470 | 1380 | 900 |
Y1000 | 2.0inch/63mm | 36M3/H | 0.79 | 620 | 1495 | 1000 |
Y1100 | 2.0inch/63mm | 42M3/H | 0.96 | 800 | 1580 | 1100 |
Y1200 | 2.0inch/63mm | 45M3/H | 1.13 | 900 | 1600 | 1200 |
Y1400 | 2.0inch/63mm | 56M3/H | 1.54 | 1350 | 1810 | 1400 |
Top mount sand filter specification:
INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.
This will avoid damages to the laterals by the force of the sand when pouring into the filter.
