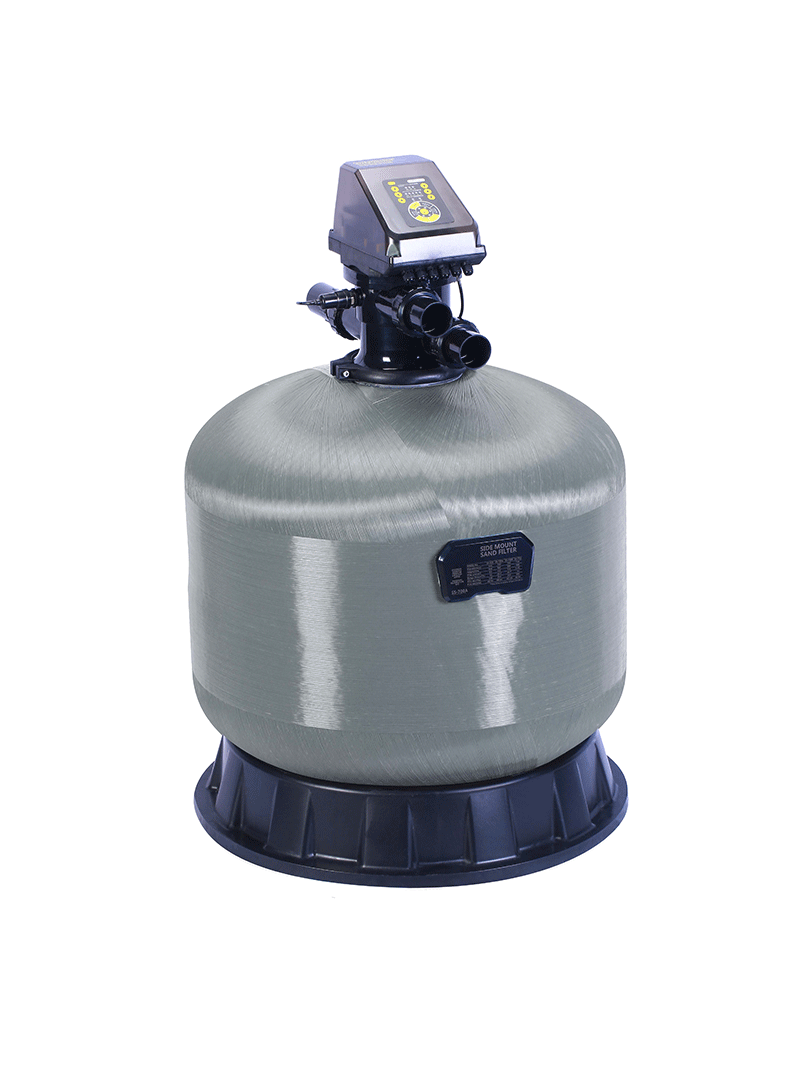

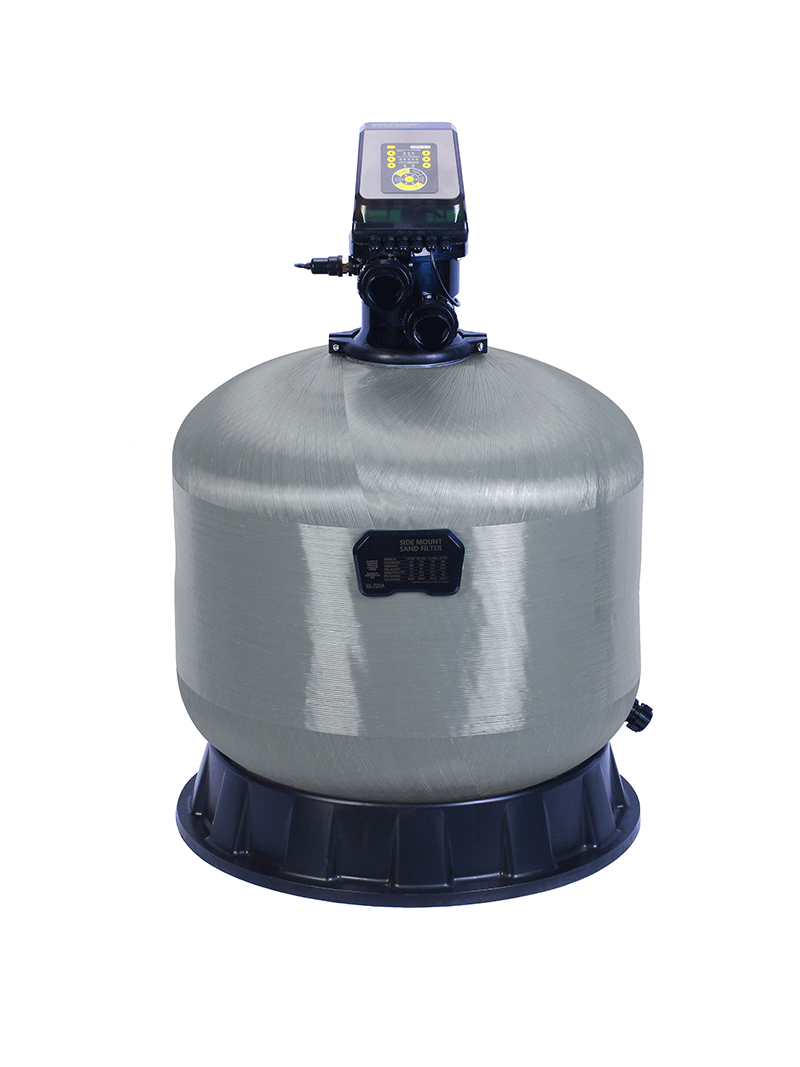

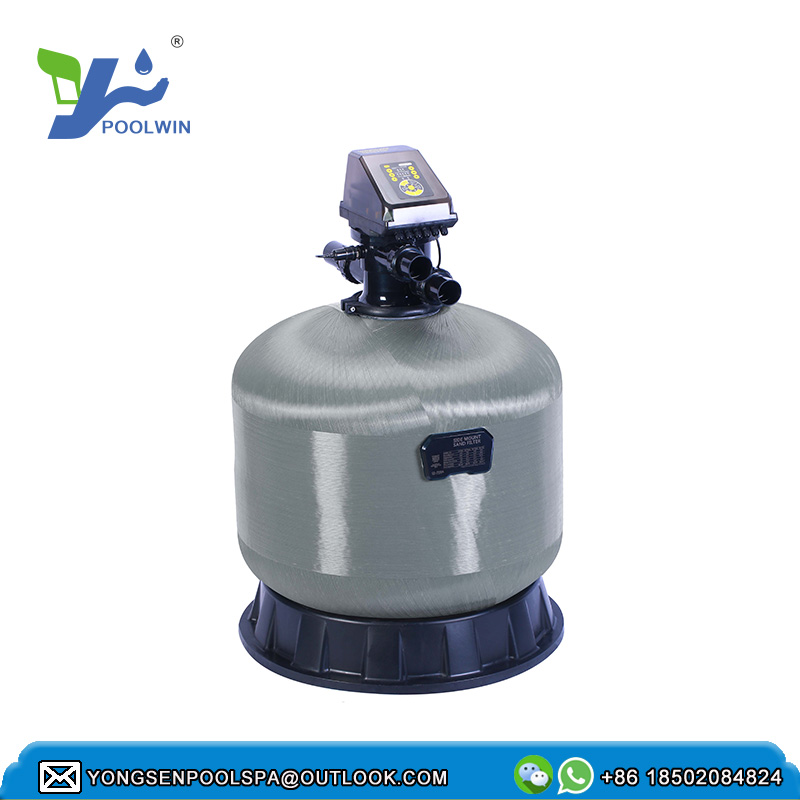

Swimming pool automatic filter backwash sand cylinder top out of the clamp interface 1.5 inches

Swimming pool automatic filter backwash sand cylinder top out of the clamp interface 1.5 inches


odel	Port Connection	Flow Rate	Filter Area(m2)	Grave(kg)	A(mm)	B(mm)
Y400	1.5inch/50mm	8M3/H	0.13	35	760	400
Y450	1.5inch/50mm	10M3/H	0.16	45	815	450
Y500	1.5inch/50mm	12M3/H	0.22	85	880	525
Y650	1.5inch/50mm	16M3/H	0.30	150	1005	625
Y700	1.5inch/50mm	20M3/H	0.40	210	1100	700

Top mount sand filter specification:

INSTALLATION

Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.

This will avoid damages to the laterals by the force of the sand when pouring into the filter.
