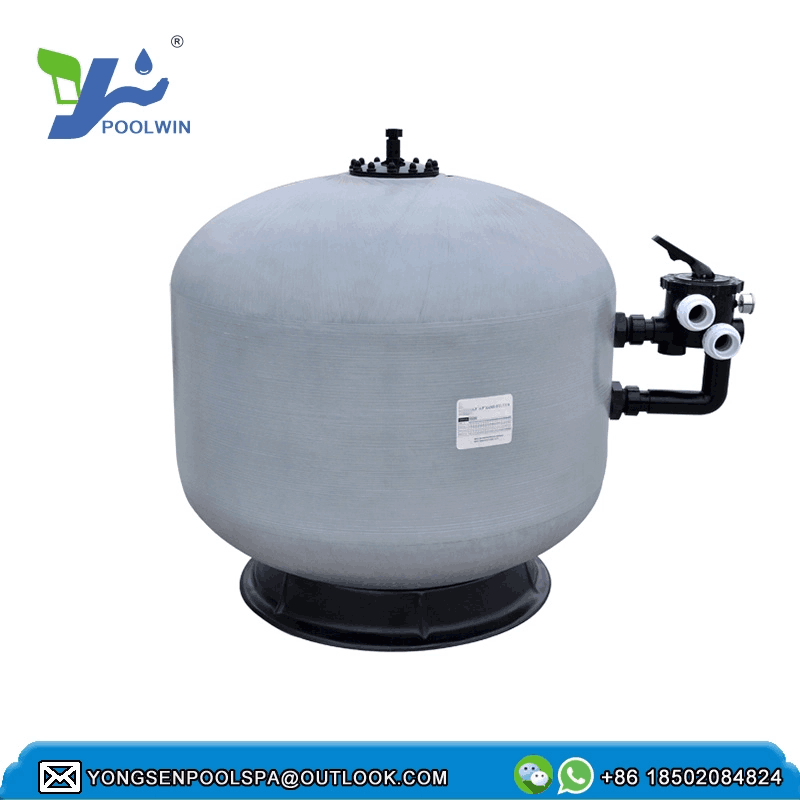

Swimming pool Side mount Sand Filteris still the most popular standard in the industry after all. With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.

The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

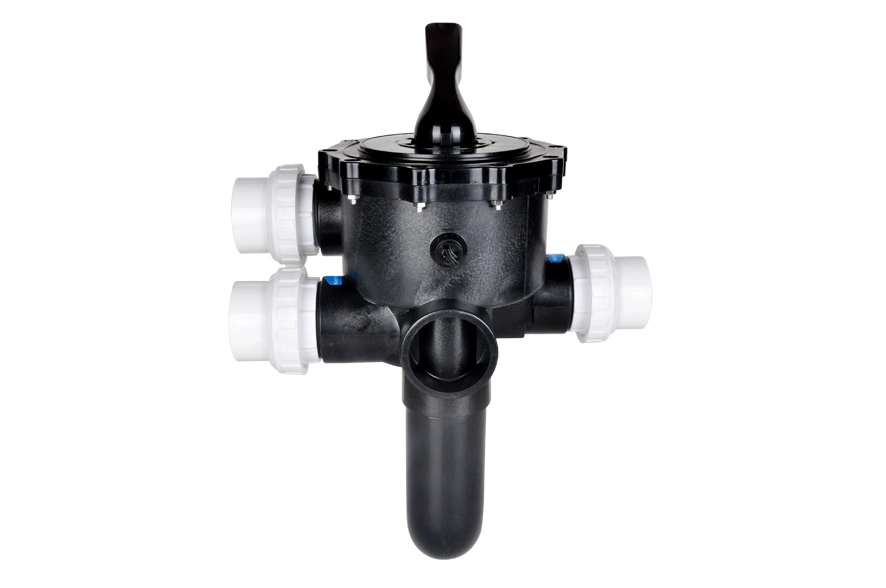

"YS"series (700B-1400)filters are equipped with a six-position, clamp style muliport vale and ABS laterals.

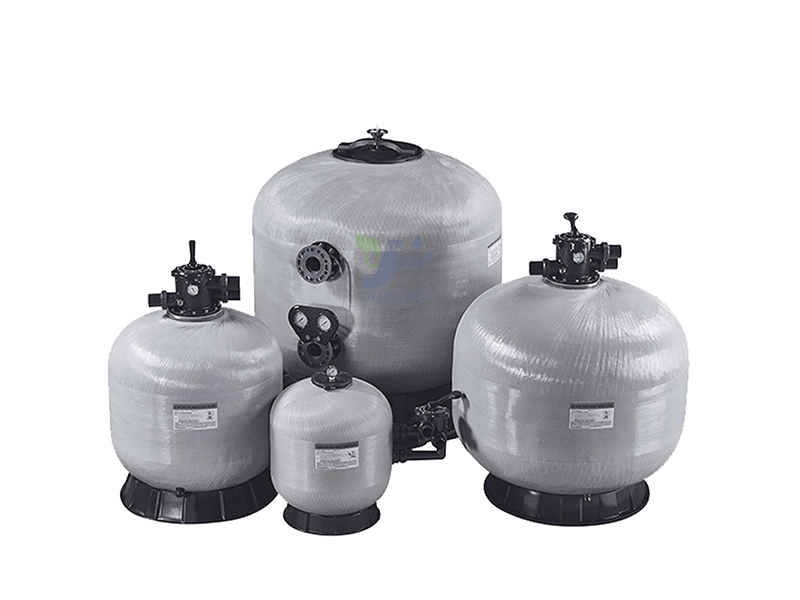

(We could supply top mount, side mount, and commercial sand filter.

You can provide project or inquiry list, we will give you solutions and good quotation.

If you have any interested in, pls don´t hesitate to contact me, we will send more information to you, thank you so much.)

freecompress-侧出砂缸-大 (1).png

Instruction of install swimming pool sand filter :

INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.

This will avoid damages to the laterals by the force of the sand when pouring into the filter.

YS700B	0.40	2.0inch 63mm	21m³/h	215	945	700
YS750	0.45	2.0inch 63mm	23m³/h	300	960	750
YS800	0.50	2.0inch 63mm	25m³/h	355	1080	800
YS900	0.64	2.0inch 63mm	31m³/h	470	1100	900
YS1000	0.79	2.0inch 63mm	36m³/h	620	1285	1000
YS1200	1.13	2.0inch 63mm	45m³/h	900	1500	1200
YS1400	1.54	2.0inch 63mm	56m³/h	1350	1580	1400

Instruction of install swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.

This will avoid damages to the laterals by the force of the sand when pouring into the filter.

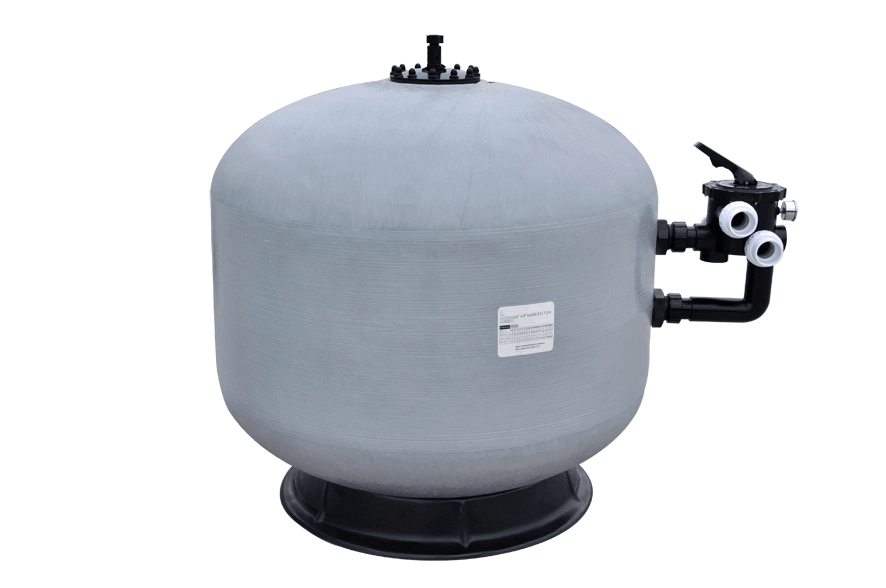

Pictures of side mount sand filter:
