Pool special water filter smooth silver fiberglass shell side out of the filter sand tank 2 inches

Easy Install Swimming Pool Filtration Side Mount Sand Pool Filter

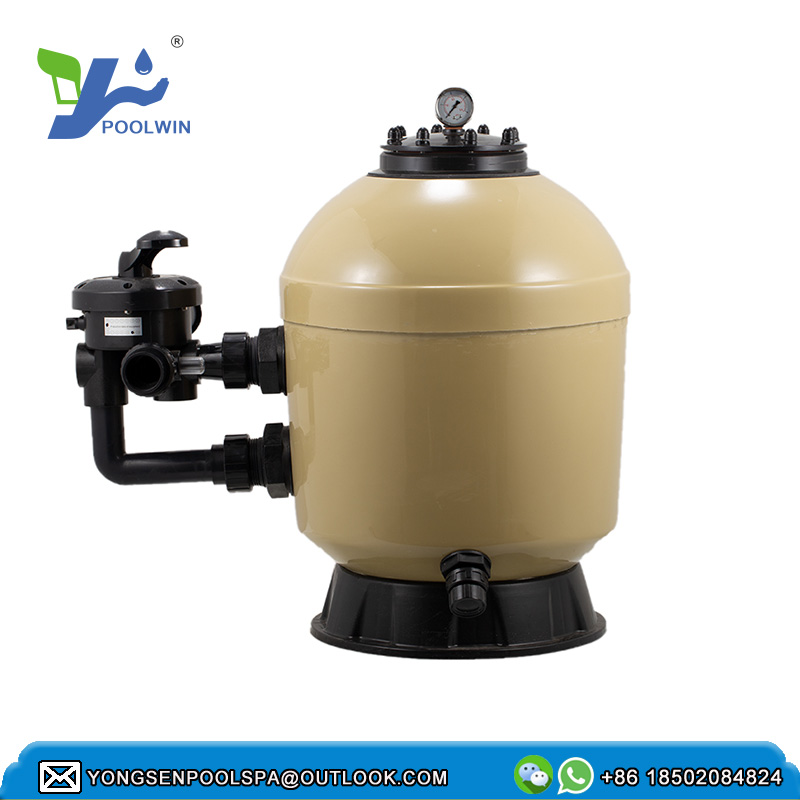

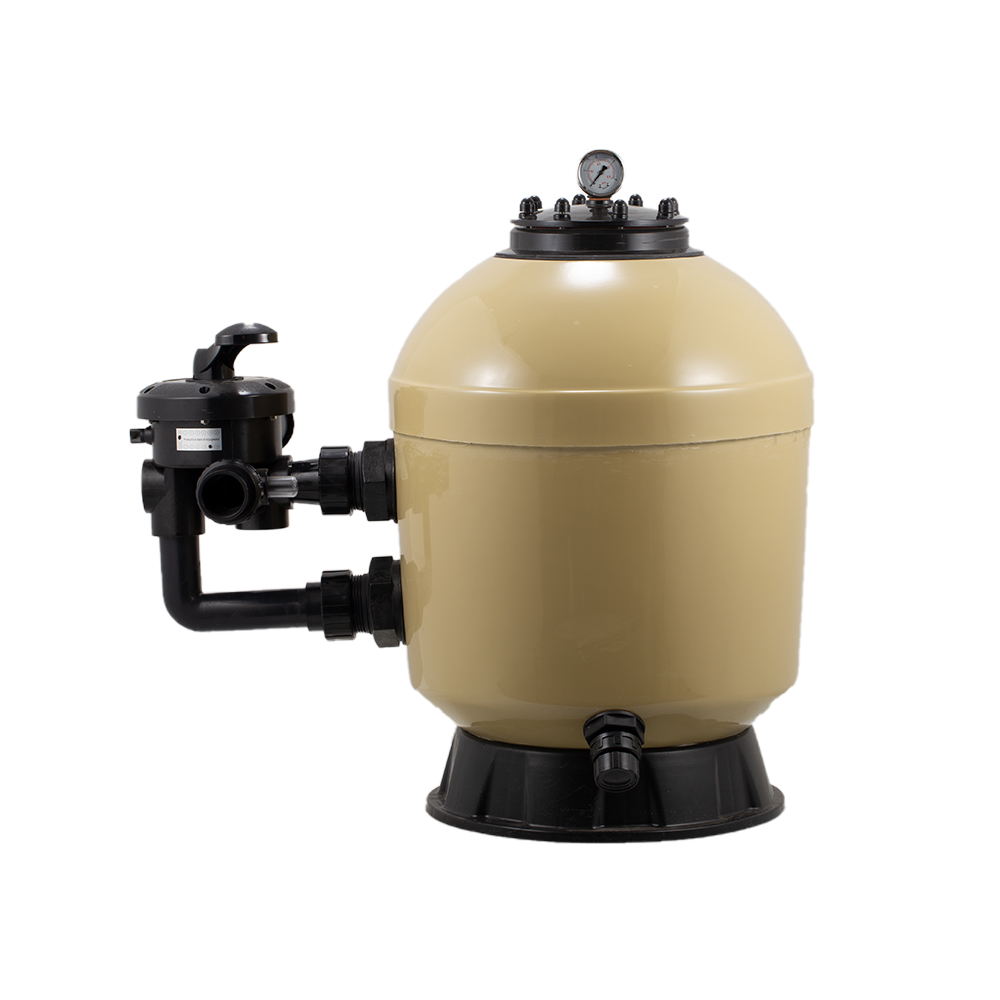

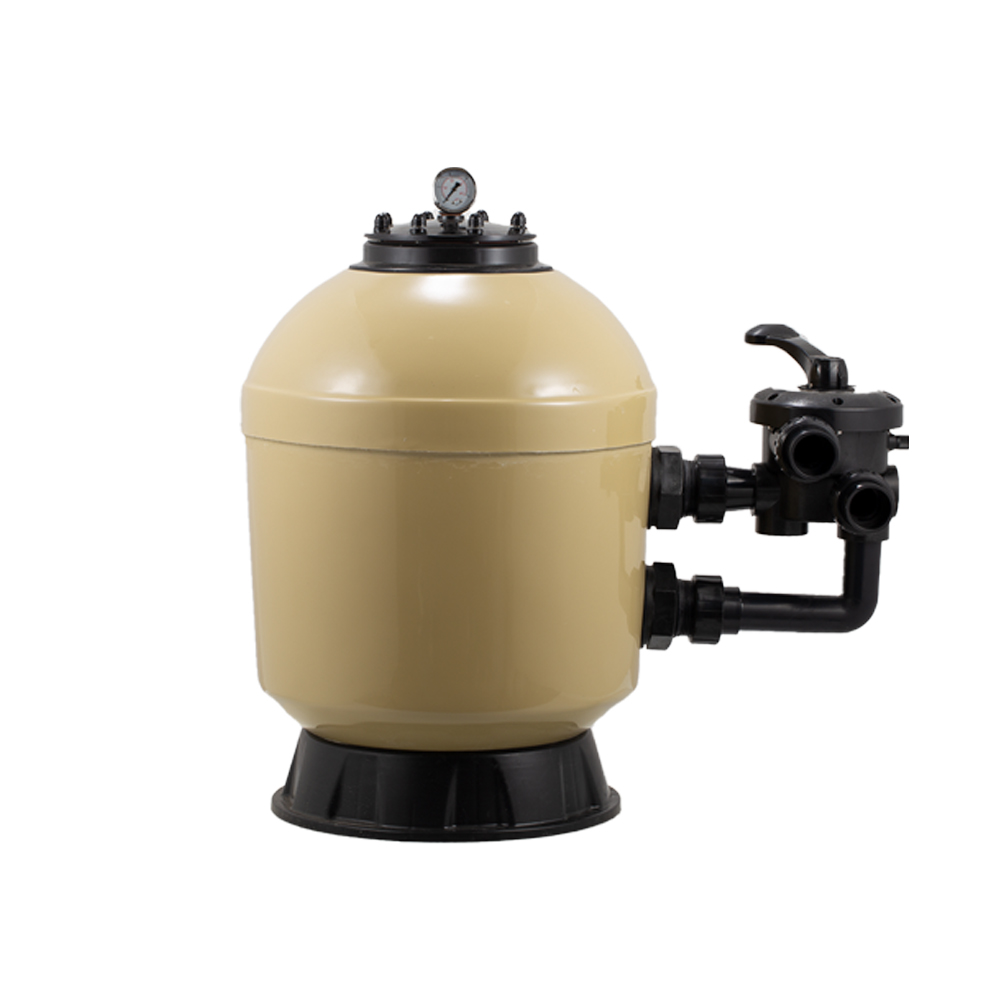

Swimming pool Side mounted Sand Filter, voluble molding of fiber glass reinforced plastics,corrosion resistant,The sand filter is a special equipment made of glass fiber wound, shaped, resistant to deformation, corrosion and wear. When water flows through the sand filter bed, dirt and organic matter in the water are trapped by the filter bed and the water is filtered. And even water flow to improve drainage system.easy to install,maintain. Model:YS450-YS700

(We could supply top mount, side mount, and commercial sand filter.

You can provide project or inquiry list, we will give you solutions and good quotation.

If you have any interested in, pls don´t hesitate to contact me, we will send more information to you, thank you so much.)


Technical Characteristics
Mode	Filter Area (㎡)	Vatve Connections	Max Flow Rate	Gravel (kg)	A mm	B mm
YS450	0.16	1.5inch 50mm	10m³/h	45	730	450
YS525	0.22	1.5inch 50mm	12m³/h	85	780	525
YS625	0.30	1.5inch 50mm	16m³/h	150	880	625
YS700	0.40	1.5inch 50mm	20m³/h	210	945	700

Instruction of install swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.

This will avoid damages to the laterals by the force of the sand when pouring into the filter.

INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.This will avoid

damages to the laterals by the force of the sand when pouring into the filter.
