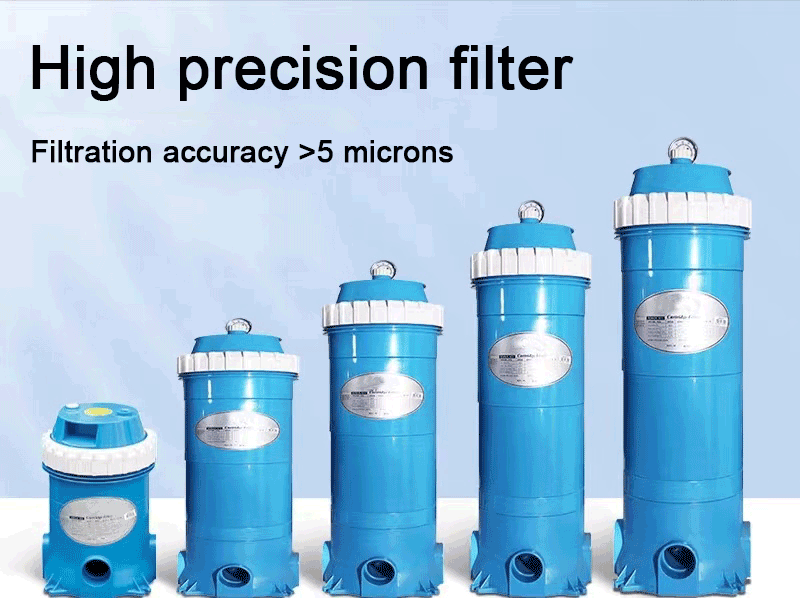

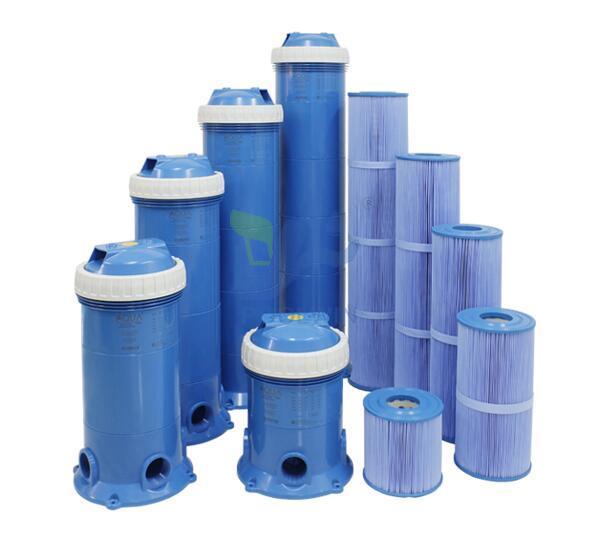

Popular pool water treatment spa swimming pool cartridge filter

Popular pool water treatment spa swimming pool cartridge filter

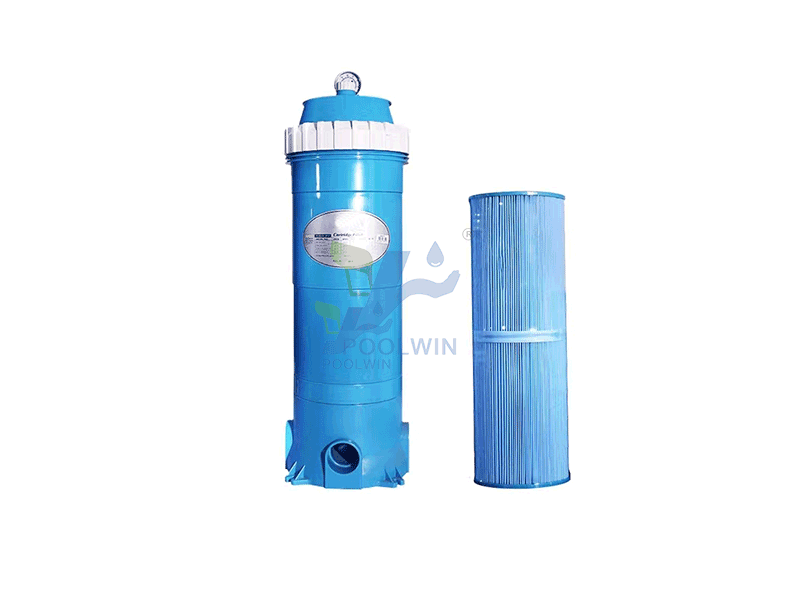

paper cartridge pool filter

Maximum Working Pressure

300kPa/50psi/3.5bar

Max flow rate

5.5m3/h-40.9m3/h

Valve connection

1.5inch 50mm/2inch 63mm

Filter area

2.25m2-16.83m2

Maximum Water Temperature

Description

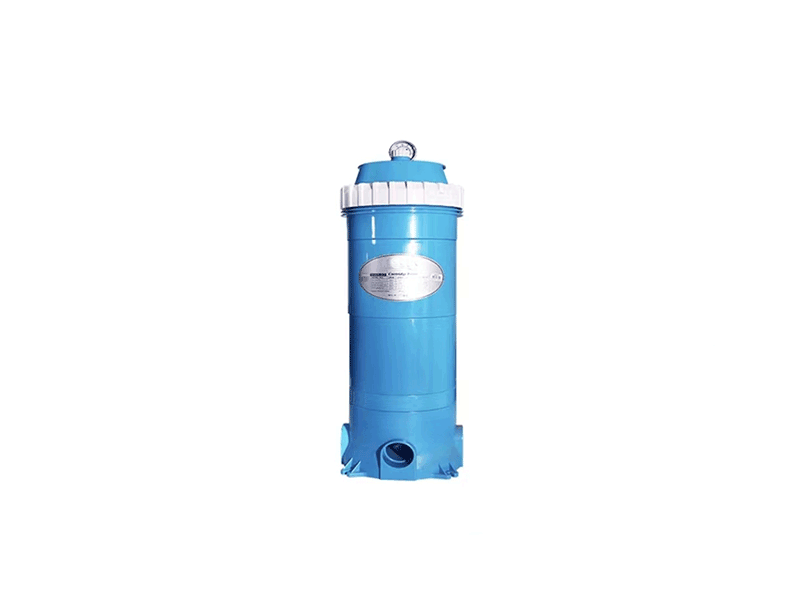

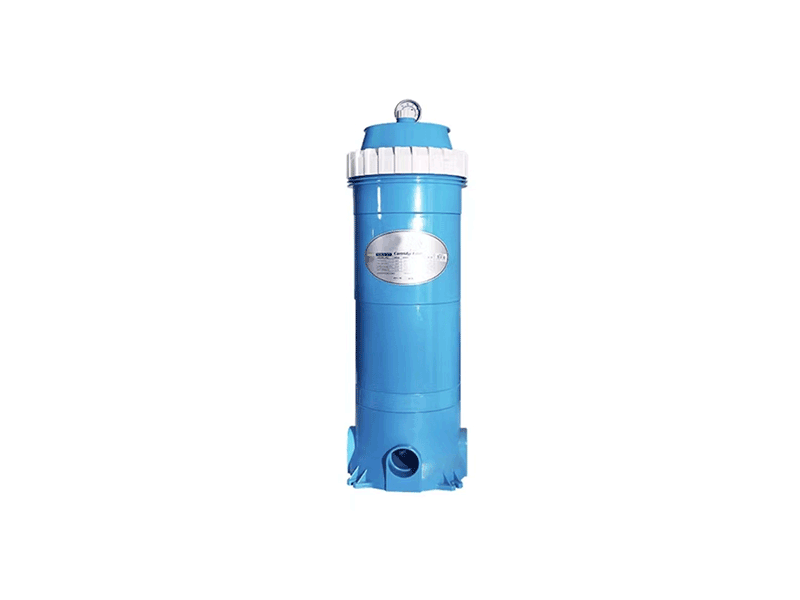

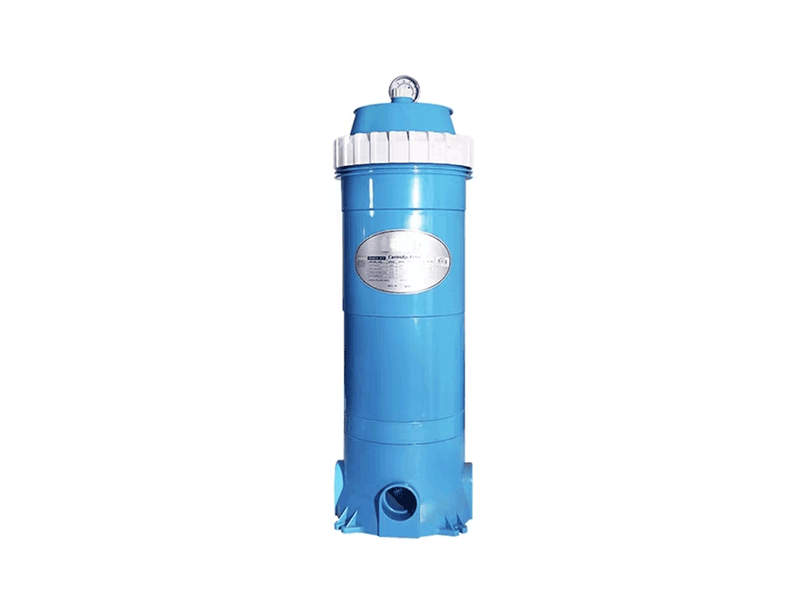

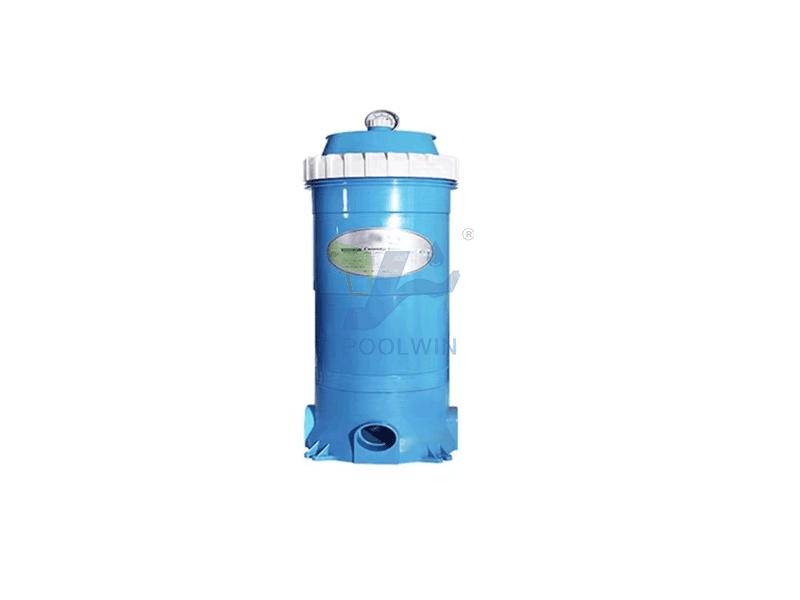

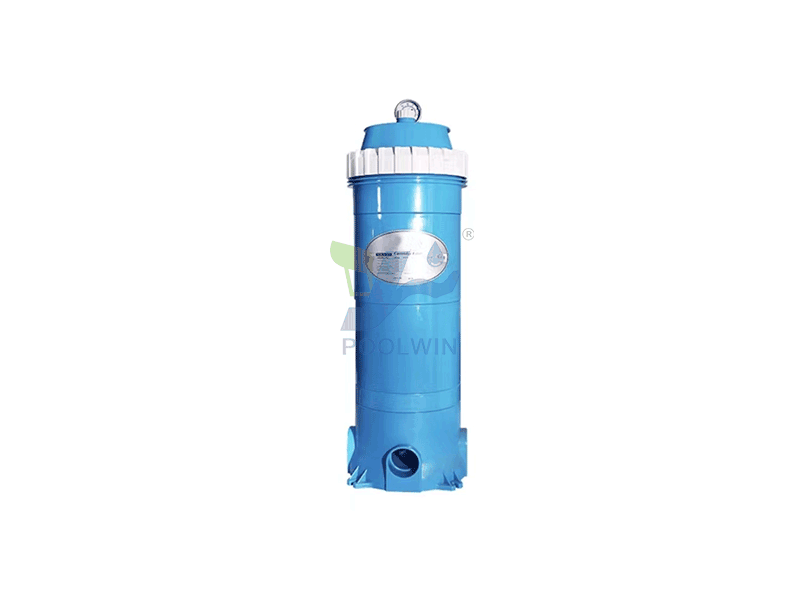

This cartridge filteris compact and light.The UV-resistant tank can prevent it from the demage of the sun.Its maximum pressure is 350 kPa/50psi.

Features
1)Compact and light
2)UV-resistant tank
3)Easy to service

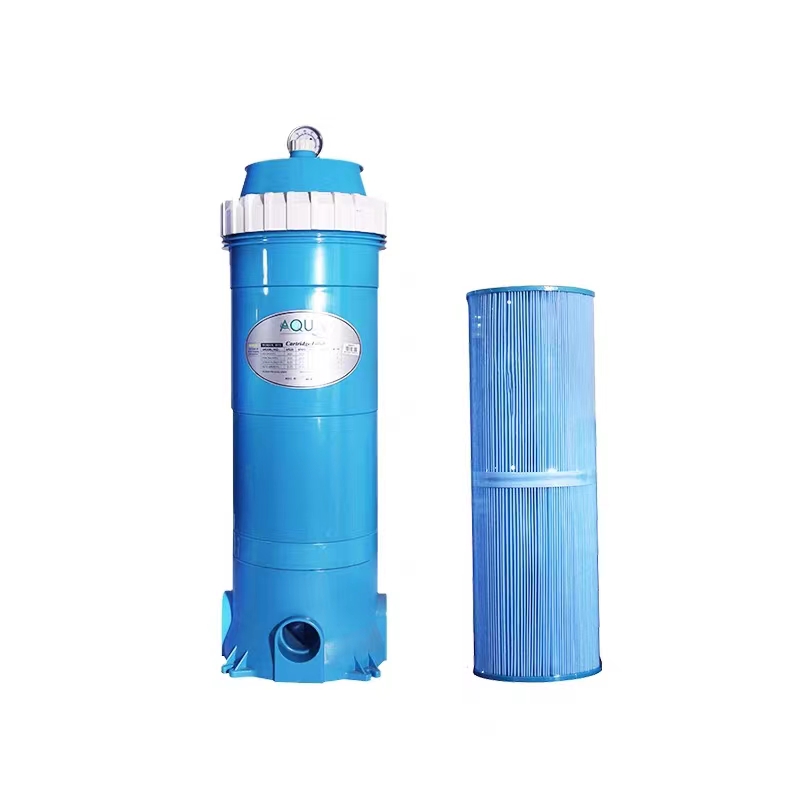

4)Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5)Screw type air bleeder for easy removal of the trapped air inside the filter tank
6)High quality oil filled pressure gauge

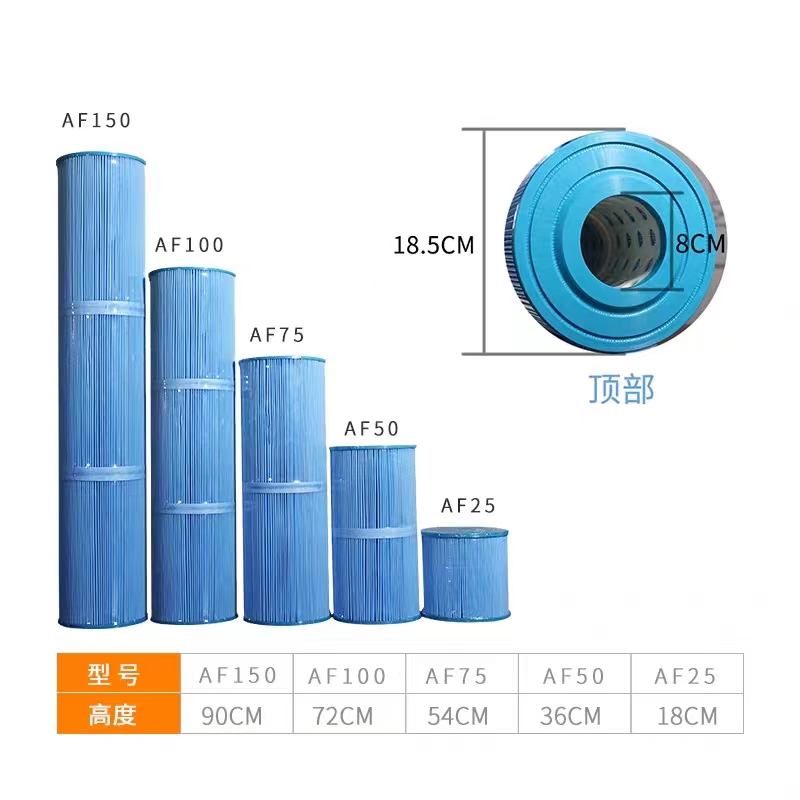

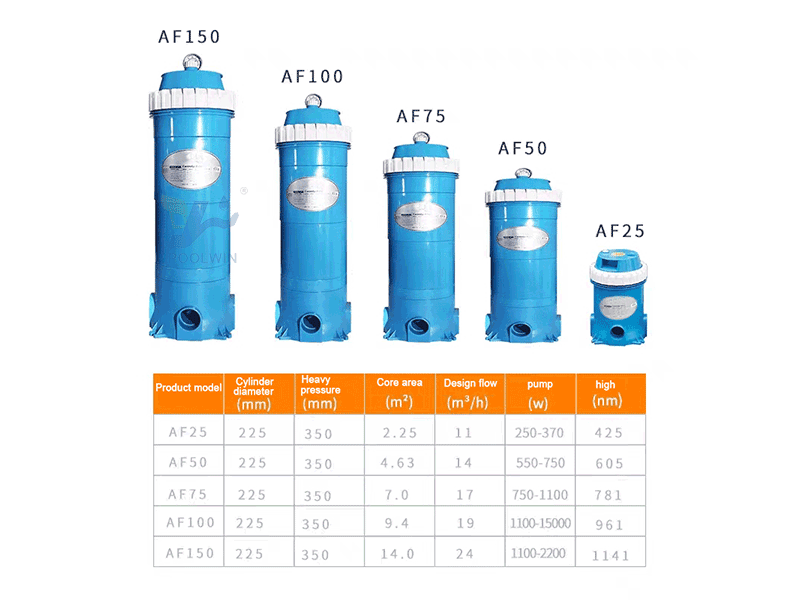

Model	Description

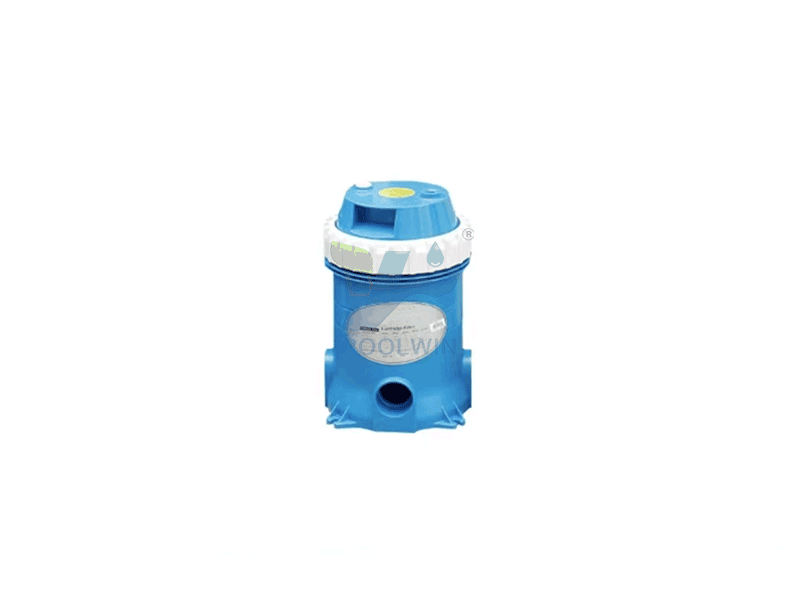

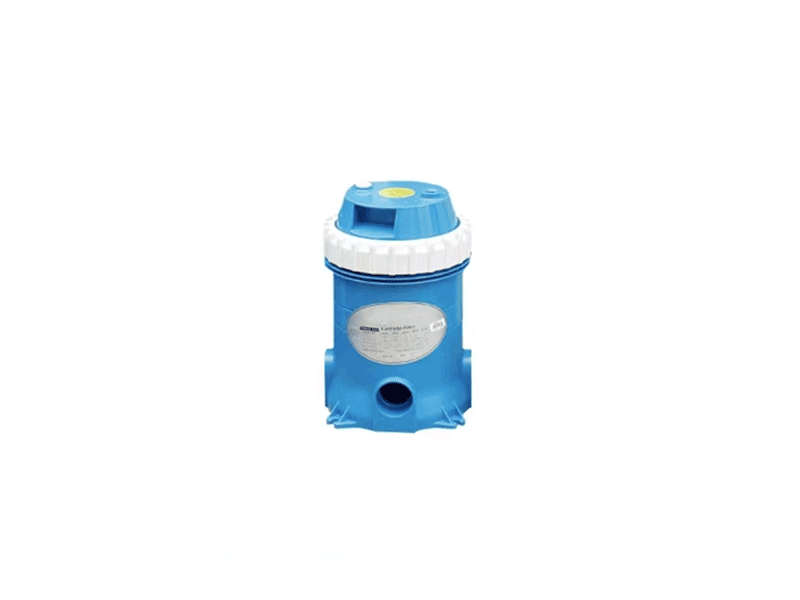

AF25	25ft2 Cartridge Filter with 1.5" union sets
AF50	50ft2 Cartridge Filter with 1.5" union sets
AF75	75ft2 Cartridge Filter with 1.5" union sets
AF100	100ft2 Cartridge Filter with 2" union sets
AF150	150ft2 Cartridge Filter with 2" union sets


Functions
1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. maximum filtration velocity: 50cbm/h/sq
4. maximum water temperature: 40 degree

Technical characteristic
